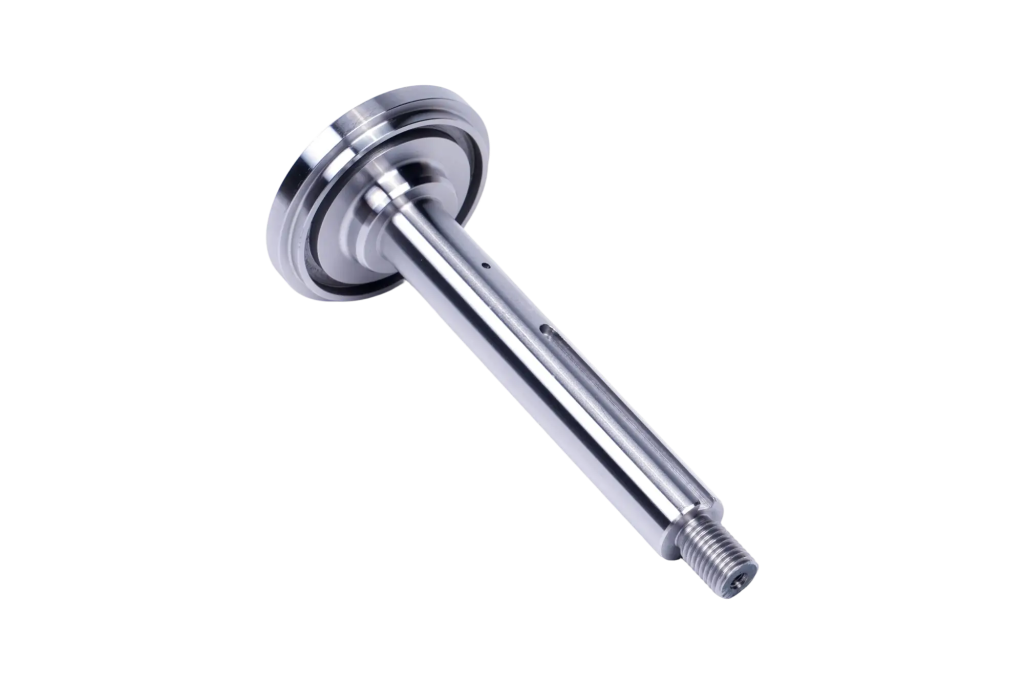

In the core of every high-speed machine tool, CNC mill, or precision grinder lies its most critical component: the High Performance Spindle Shaft . More than just a rotating bar, it is the engineered heart that directly translates power into precision, dictating the limits of a machine’s speed, accuracy, rigidity, and reliability.
Why Choose Dongpei High Performance Spindle Shafts?
| Feature | Benefit |
|---|---|
| High-quality stainless steel | Top-tier strength and exceptional corrosion resistance |
| Precision-machined threaded end | Firm, smooth integration with motors and drive systems |
| Integrated base flange | Optimizes stability and load distribution under high torque |
| Polished surface finish | Excellent craftsmanship, long-term reliability |
| Cooling support ports | Lubrication and cooling, extends service life |
Key Specifications
| Parameter | Detail |
|---|---|
| Material | High-quality stainless steel |
| Design features | Precision threads, integrated base flange, polished surface |
| Cooling | Specially designed ports for lubrication and cooling |
| Key property | High strength and corrosion resistance |
| Applications | Aerospace, automotive, advanced manufacturing, medical |
Core Applications
This precision spindle shaft for aerospace is ideal for:
| Industry | Application |
|---|---|
| Aerospace Manufacturing | Milling titanium and aluminum, grinding engine parts |
| High-Performance Automotive | Engine blocks, transmission components, racing parts |
| Advanced Manufacturing & CNC | High-speed machining centers, mold and die making |
| Medical Device Production | Surgical tools, implants, diagnostic equipment |
Key Engineering Features
1. Premium Stainless Steel Construction
Fabricated from high-quality stainless steel, this industrial spindle shaft for CNC provides an optimal balance of top-tier strength and exceptional corrosion resistance, ensuring long-term structural integrity even in harsh coolant environments.
2. Precision-Machined Threaded End
The precision-machined threaded end guarantees a firm and smooth integration with high-speed motors, machining centers, or drive systems, minimizing runout and eliminating power loss.
3. Integrated Base Flange
The innovative integrated base flange significantly optimizes stability and load distribution under high torque conditions, minimizing deflection and long-term wear.
4. Advanced Cooling Support
Specially designed ports support integrated lubrication and cooling systems, extending service life and maintaining reliability in continuous-operation applications.
Technical Advantages
| Advantage | Impact |
|---|---|
| Enhanced machining accuracy | Tighter part tolerances, improved surface finishes |
| Increased rigidity & stability | Allows aggressive machining, reduces chatter |
| Extended operational lifespan | Reduces downtime, lowers maintenance frequency |
| Superior power transmission | Efficient transfer with minimal losses |
Performance Comparison
| Property | Stainless Steel Spindle | Aluminum Spindle |
|---|---|---|
| Strength | Superior | Moderate |
| Corrosion resistance | Excellent | Good |
| Durability | Long-term | Limited |
| Weight | Heavier | Lightweight |
| Best for | High-stress, demanding applications | Weight-sensitive applications |
FAQ
Q1: What is a high performance spindle shaft?
A: A high performance spindle shaft is the central rotating axis that holds and drives a cutting tool or workpiece, engineered for extreme rotational accuracy, rigidity, and reliability.
Q2: What materials are used?
A: This spindle shaft is fabricated from high-quality stainless steel, offering top-tier strength and exceptional corrosion resistance.
Q3: What is the advantage of the integrated base flange?
A: The integrated base flange optimizes stability and load distribution under high torque conditions, minimizing deflection and long-term wear.
Q4: What industries use these shafts?
A: high grade spindle shaft for machine tools is used in aerospace, automotive, advanced manufacturing, and medical device production.
Q5: How does the cooling system work?
A: Specially designed ports support integrated lubrication and cooling systems, preventing heat-induced precision loss and extending service life.
Q6: What is the advantage of stainless steel over aluminum?
A: Stainless steel offers superior strength and durability compared to aluminum, making it ideal for high-stress, demanding applications.
Q7: What is total indicated runout (TIR)?
A: TIR measures rotational accuracy. High-performance spindles achieve minimal runout for superior part accuracy and surface finish.
Q8: How do I get a quote?
A: Contact Dongpei’s engineering team with your application requirements and specifications.
Get a Quote
Ready to upgrade your manufacturing capability with a high performance spindle shaft? Contact Ningbo Dongpei Machinery Co., Ltd. today.
