In the competitive landscape of modern manufacturing, the efficiency and quality of CNC machining are directly influenced by the connection between the machine spindle and the cutting tool. The High Performance CNC Machine Tool Tool Holder is this critical link—a precision-engineered component that dictates accuracy, tool life, and overall shop floor productivity.
Why Choose Dongpei CNC Tool Holders?
| Feature | Benefit |
|---|---|
| Aviation-grade aluminum alloy | Lightweight yet sturdy, excellent strength-to-weight ratio |
| Micro-arc oxidation surface treatment | Enhanced corrosion resistance, modern texture |
| Octagonal rear end structure | Super clamping force, suppresses vibration |
| Precision stepped collar + optimized groove | Eliminates tool slippage risk |
| Super-finished front cone | Absolute concentricity with standard blades |
| Dynamic balancing | Reduces noise and energy consumption |
Key Specifications
| Parameter | Detail |
|---|---|
| Material | Aviation-grade aluminum alloy / Alloy steel (AISI 4140) |
| Surface treatment | Micro-arc oxidation |
| Design features | Octagonal rear end, precision stepped collar, optimized groove |
| Clamping systems | Hydraulic expansion, shrink-fit, collet chucks |
| Applications | Aerospace, automotive, medical, die/mold, general machining |
Core Applications
This precision CNC tool holder is essential for:
| Industry | Application |
|---|---|
| Aerospace | High-speed finishing of aluminum and titanium |
| Automotive | Heavy roughing and hard milling |
| Medical Device | High-precision boring and jig grinding |
| Die/Mold Making | Deep cavity and reach milling |
| General Machining | Multi-task and high-mix production |
Key Advantages
| Advantage | Impact |
|---|---|
| Superior surface finish | Lower runout and vibration translate to better finishes |
| Extended tool life | Can increase by 50% or more |
| Increased material removal rates | Greater rigidity allows aggressive cutting parameters |
| Reduced machine downtime | Better balance protects spindle bearings |
| Enhanced process reliability | Consistent, predictable performance reduces scrap |
Engineering Excellence

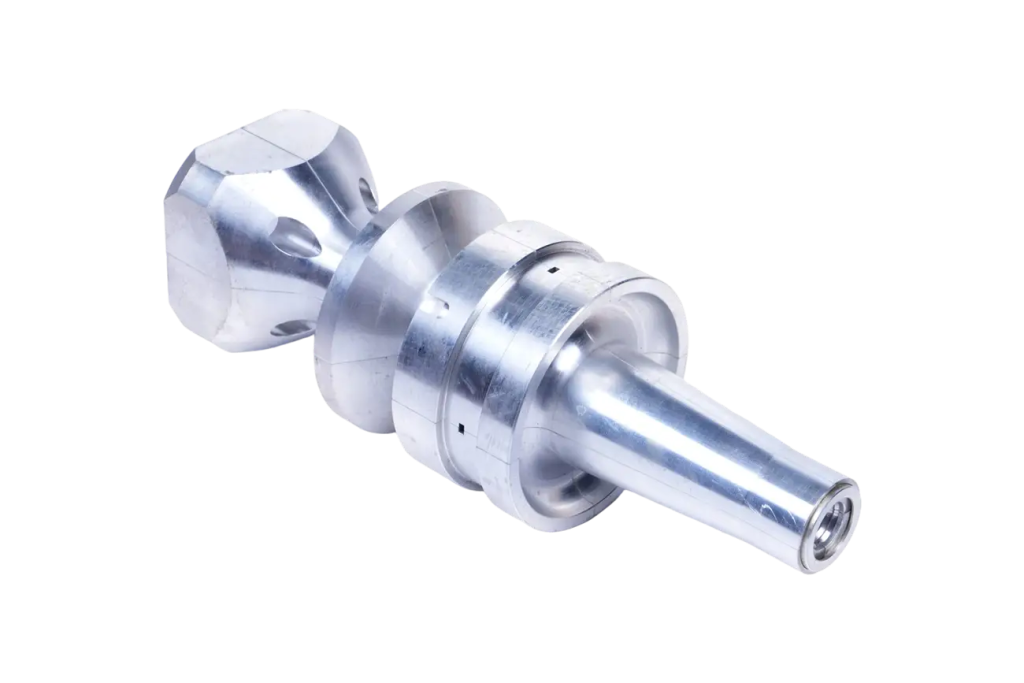

1. Octagonal Rear End Structure
The unique octagonal rear end structure provides super clamping force and effectively suppresses vibration during high-speed rotation, ensuring excellent geometric stability during processing.
2. Precision Stepped Collar + Optimized Groove
This design completely eliminates the risk of tool slippage, achieving ultimate reliability and safety for technicians.
3. Super-Finished Front Cone
The front cone is super-finished to ensure absolute concentricity with the standard blade, meeting strict tolerance requirements for ultra-precision machining.
4. Micro-Arc Oxidation Surface Treatment
This advanced treatment not only gives a modern texture but also significantly enhances corrosion resistance, adapting to harsh working conditions.
Clamping System Options
| System | Best For |
|---|---|
| Hydraulic Expansion Holders | High-precision finishing, low runout (< 0.0003″) |
| Shrink-Fit Holders | Maximum rigidity, high-speed applications |
| Precision Collet Chucks | Versatility, frequent tool changes |
Selection Guide
| Operation | Recommended Holder |
|---|---|
| High-speed finishing | Hydraulic expansion or balanced shrink-fit |
| Heavy roughing | Shrink-fit or milling chucks with high grip force |
| Deep cavity milling | Hydraulic expansion with damping |
| High-mix production | Precision collet chucks |
| Precision boring | Hydraulic expansion or precision shrink-fit |
FAQ
Q1: What is a CNC machine tool tool holder?
A: A CNC machine tool tool holder is the critical interface that clamps a cutting tool and mounts it into the CNC machine’s spindle, ensuring accuracy, rigidity, and performance.
Q2: What materials are used?
A: These holders are made from aviation-grade aluminum alloy or high-grade alloy steel (AISI 4140) with heat treatment for durability and fatigue resistance.
Q3: What is the octagonal rear end structure?
A: The octagonal rear end structure provides super clamping force and effectively suppresses vibration during high-speed rotation.
Q4: What is micro-arc oxidation?
A: Micro-arc oxidation is an advanced surface treatment that significantly enhances corrosion resistance and provides a modern texture.
Q5: What industries use these tool holders?
A: high rigidity tool holder is used in aerospace, automotive, medical device manufacturing, die/mold making, and general machining.
Q6: How does the tool holder improve tool life?
A: By reducing vibration and ensuring the tool cuts as designed, tool life can increase by 50% or more.
Q7: What clamping systems are available?
A: We offer hydraulic expansion holders, shrink-fit holders, and precision collet chucks to suit different applications.
Q8: How do I get a quote?
A: Contact Dongpei’s engineering team with your application requirements and specifications.
