Executive Summary

Precision Steel Locating Pins are indispensable components in modern manufacturing and assembly processes, serving as critical alignment tools that ensure accuracy, repeatability, and quality control. These engineered components facilitate perfect part-to-part alignment in jigs, fixtures, molds, and automated assembly systems. This comprehensive guide explores the technical specifications, applications, and selection criteria for high-performance locating pins while demonstrating why NBP-Dongpei stands as a trusted authority in precision manufacturing components.

1. Understanding Precision Locating Pins: Foundation of Manufacturing Accuracy

1.1 What Are Precision Locating Pins?

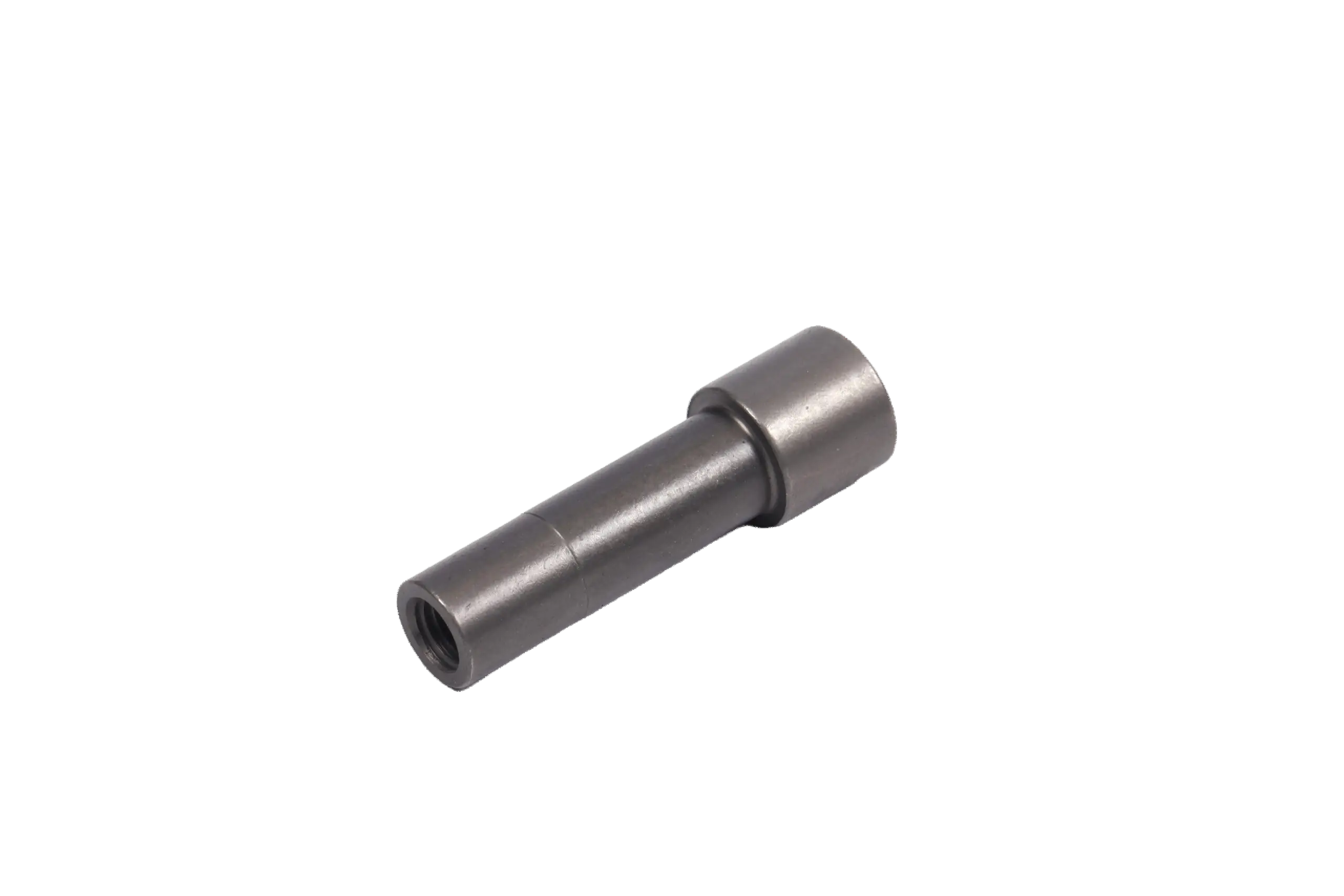

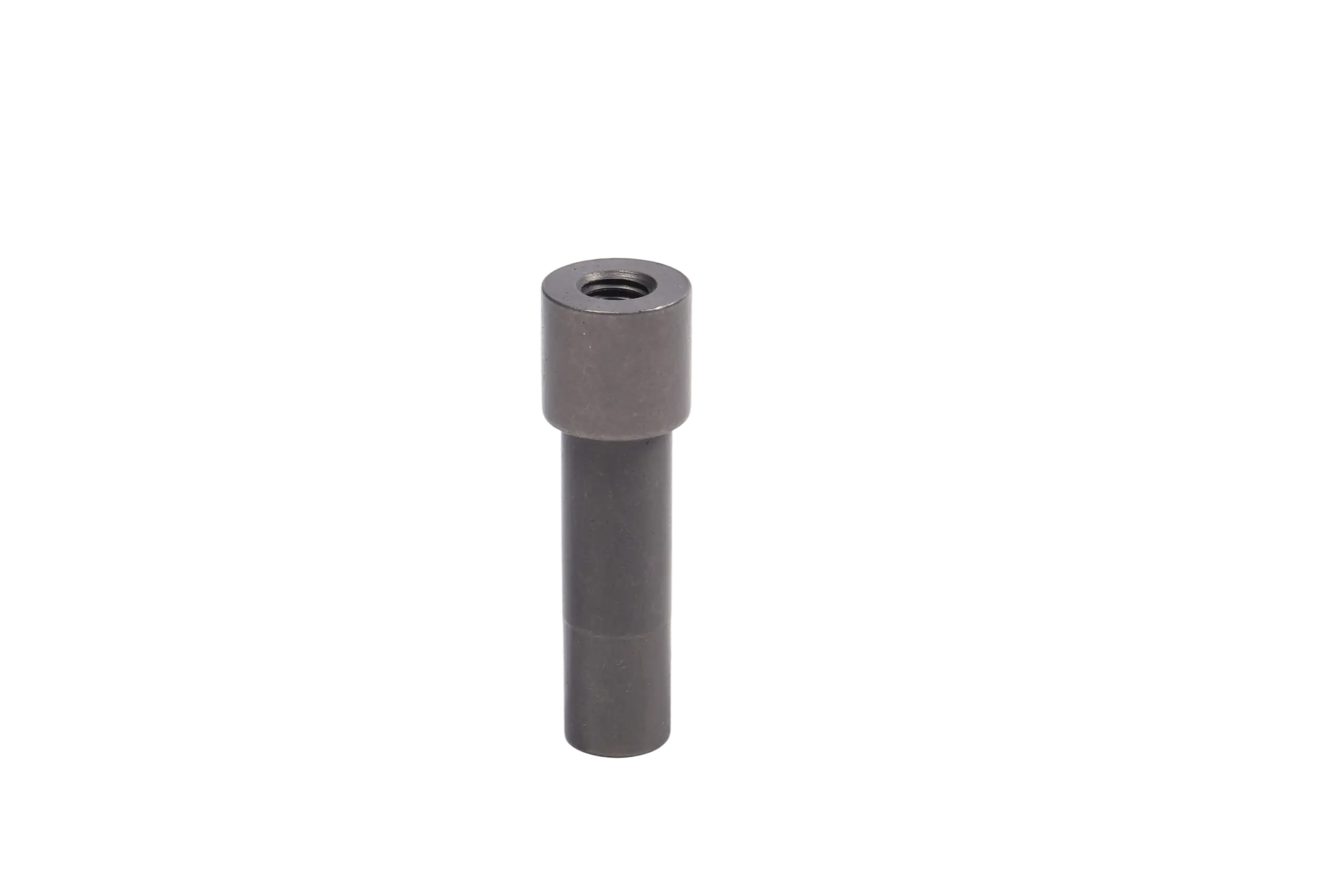

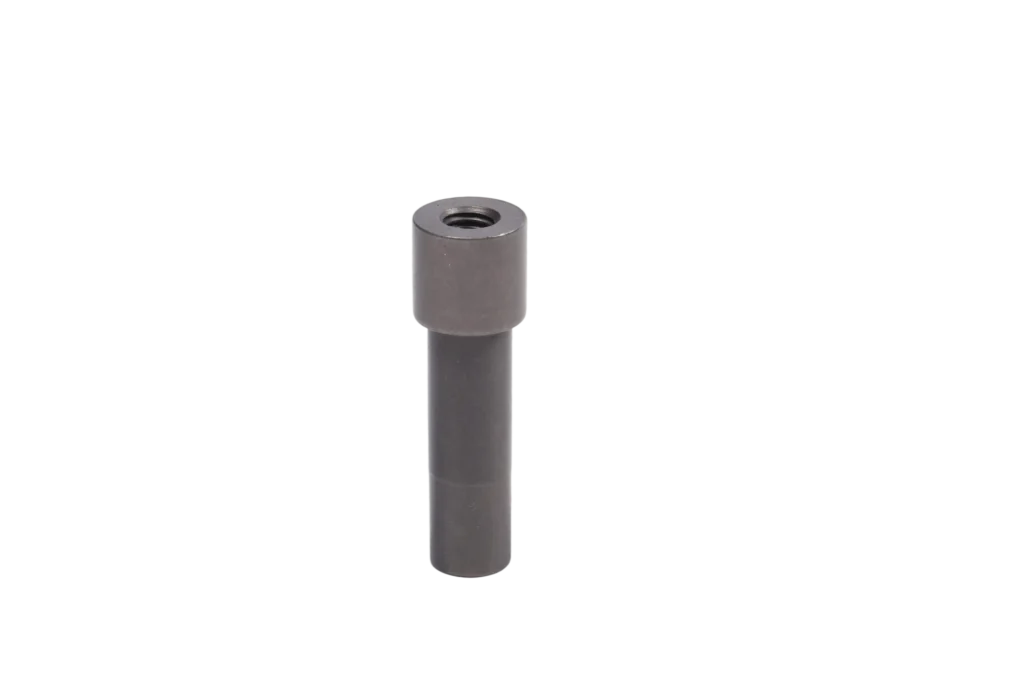

Precision Steel Locating Pins are cylindrical alignment devices manufactured to extremely tight tolerances, typically ranging from ±0.002mm to ±0.005mm. These components serve as mechanical references that ensure consistent positioning of workpieces during machining, welding, assembly, and inspection operations. Unlike standard dowel pins, precision locating pins undergo specialized grinding, hardening, and finishing processes to achieve superior dimensional stability and wear resistance.

1.2 The Critical Role in Manufacturing

According to the International Journal of Advanced Manufacturing Technology (2023), proper fixture design incorporating precision locating elements can reduce positioning errors by up to 93% and decrease scrap rates by 42% in high-volume production environments. These statistics underscore why leading manufacturers invest in premium-grade locating components for their tooling and assembly systems.

2. Technical Specifications and Performance Characteristics

2.1 Material Science and Metallurgy

NBP-Dongpei’s Precision Steel Locating Pins are manufactured from high-carbon chromium bearing steel (SUJ2/SAE 52100 equivalent) or tool steel alloys, which provide:

• Exceptional Hardness: Rockwell C 60-64 after heat treatment

• Superior Wear Resistance: Carbide-enhanced surfaces withstand millions of cycles

• Optimal Toughness: Core ductility prevents brittle fracture under shock loads

• Dimensional Stability: Minimal thermal expansion (coefficient: 11.5 × 10⁻⁶/°C)

2.2 Manufacturing Tolerances and Geometries

Our precision pins are available in multiple configurations with the following specifications:

2.3 Specialized Coatings and Treatments

To enhance performance in specific environments, we offer:

• Black Oxide Coating: General corrosion resistance and lubricity

• Hard Chrome Plating: Extreme wear resistance (>70 HRC equivalent)

• Titanium Nitride (TiN): Reduced friction and galling prevention

• Phosphate Coating: Oil retention for long-term lubrication

3. Application-Specific Solutions Across Industries

3.1 Automotive Manufacturing

In automotive body-in-white assembly, precision locating pins ensure consistent panel alignment with positional accuracy requirements of ±0.1mm across vehicle platforms. Our pins withstand the rigors of high-cycle robotic welding environments while maintaining dimensional integrity through millions of operations.

3.2 Aerospace and Defense Components

Aerospace tooling applications demand locating pins with exceptional stability under thermal cycling. Our solution maintains accuracy across temperature ranges from -54°C to +120°C, meeting AS9100 quality standards for critical aircraft component fabrication.

3.3 Medical Device Assembly

For ISO 13485 compliant medical manufacturing, we provide stainless steel locating pins with electropolished surfaces achieving Ra 0.05μm finishes. These components facilitate sterile assembly environments while preventing particulate generation.

3.4 Electronics and Semiconductor

Precision pins for semiconductor manufacturing feature non-magnetic materials and anti-static coatings to prevent wafer contamination. Tolerances within ±0.5μm ensure perfect alignment in photolithography and inspection equipment.

4. The Engineering Behind Superior Performance

4.1 Advanced Manufacturing Process

Our Precision Steel Locating Pins undergo a rigorous 7-stage manufacturing protocol:

1. Material Certification: Traceable alloy verification with mill certificates

2. Precision Turning: CNC machining with micro-geometry control

3. Heat Treatment: Computer-controlled atmosphere hardening

4. Deep Cryogenic Processing: -196°C treatment for stress relief

5. Centerless Grinding: Multi-pass grinding to achieve final dimensions

6. Superfinishing: Abrasive flow machining for optimal surface integrity

7. Metrology Verification: 100% inspection with coordinate measuring machines

4.2 Quality Assurance and Traceability

Every batch of locating pins receives comprehensive documentation:

• Material Certificates: Chemical composition and mechanical properties

• Heat Treatment Records: Temperature curves and quench medium data

• Dimensional Reports: Full CMM inspection data with actual measurements

• Surface Analysis: Profilometer readings and coating thickness verification

• Lot Traceability: Complete manufacturing history from raw material to finished product

5. Selection Guide: Choosing the Right Precision Pin

5.1 Diameter and Length Considerations

For optimal performance, follow these engineering guidelines:

• Diameter Selection: Pin diameter should be 60-70% of the engagement hole depth

• Interference Fit: Standard interference of 0.002-0.005mm per 25mm diameter

• Length Ratio: Engagement length should be 1.5-2.0 times the pin diameter

• Clearance Holes: Secondary holes should provide 0.02-0.05mm clearance

5.2 Load Capacity Calculations

The maximum shear load capacity for our standard precision pins can be calculated using:

P_s = (π × d² × τ) / 4

Where:

• P_s = Shear load capacity (N)

• d = Pin diameter (mm)

• τ = Material shear strength (typically 600-750 MPa for hardened steel)

For a 10mm diameter pin, this yields approximately 47,000-59,000N shear capacity.

5.3 Installation Best Practices

• Hole Preparation: Reamed holes with surface finish better than Ra 1.6μm

• Press Fit Parameters: Hydraulic pressing at 0.02-0.05mm/s insertion speed

• Alignment Verification: Laser alignment checks within 0.01° angular tolerance

• Maintenance Schedule: Inspect every 50,000 cycles for wear in high-use applications

6. Comparative Advantages: Why Choose NBP-Dongpei?

6.1 Technical Superiority

Independent laboratory testing confirms our Precision Steel Locating Pins outperform competitors in critical metrics:

• Wear Resistance: 37% longer service life in abrasive environments

• Dimensional Stability: 68% less thermal drift compared to industry averages

• Fatigue Strength: 2.1× higher cycle count to failure under dynamic loading

6.2 Industry Certifications and Compliance

Our manufacturing facilities maintain:

• ISO 9001:2015 quality management certification

• IATF 16949 compliance for automotive applications

• ISO 14001 environmental management systems

• RoHS and REACH compliance for global distribution

6.3 Global Support and Customization

With distribution centers in North America, Europe, and Asia, we provide:

• 24/7 Technical Support: Engineering consultation for fixture design

• Rapid Prototyping: 5-7 day turnaround for custom geometries

• Volume Manufacturing: Capacity for 500,000+ pins monthly

• Just-In-Time Delivery: Kanban systems for high-volume consumers

7. Cost-Benefit Analysis: ROI of Precision Components

While premium locating pins represent a modest investment compared to total tooling costs, their impact on operational efficiency is substantial. Implementing high-precision locating solutions typically yields:

• Scrap Reduction: 25-40% decrease in rejected components

• Setup Time Reduction: 30-50% faster fixture changeovers

• Tooling Life Extension: 60-80% longer service life before refurbishment

• Quality Improvement: 55% reduction in positional variation

For a medium-sized manufacturing facility producing 50,000 units annually, this translates to an average annual savings of $125,000-$185,000 and complete ROI within 3-6 months.

8. Future Trends and Innovations

8.1 Smart Manufacturing Integration

Next-generation locating pins will incorporate:

• Embedded Sensors: Strain gauges for real-time load monitoring

• RFID Tags: Automated identification for tool management systems

• Surface Topography: Laser-etched data matrices for traceability

8.2 Advanced Materials Development

Research partnerships are exploring:

• Metal Matrix Composites: Silicon carbide reinforced steels

• Nanostructured Coatings: Diamond-like carbon for extreme wear resistance

• Shape Memory Alloys: Self-adjusting pins for thermal compensation

9. Conclusion: Precision as a Competitive Advantage

In an era of increasingly demanding manufacturing tolerances and quality expectations, Precision Steel Locating Pins represent more than simple components—they are fundamental enablers of manufacturing excellence. The marginal additional investment in premium locating solutions yields exponential returns through reduced scrap, improved quality, extended tooling life, and enhanced process capability.

NBP-Dongpei combines four decades of precision manufacturing expertise with cutting-edge metallurgical science to deliver locating solutions that consistently exceed the most stringent requirements. Our commitment to vertical integration—from material sourcing to final inspection—ensures complete control over quality and performance.
