In the core of every high-speed machine tool, CNC mill, or precision grinder lies its most critical component: the High Performance Spindle Shaft. More than just a rotating bar, it is the engineered heart that directly translates power into precision. This component dictates the limits of a machine’s speed, accuracy, rigidity, and reliability. For engineers and procurement specialists in demanding fields like aerospace, automotive, and advanced manufacturing, selecting the right spindle shaft is a foundational decision that impacts productivity, part quality, and total cost of ownership. This guide delves into the engineering, benefits, and selection criteria for premium spindle shafts, demonstrating why they are indispensable for competitive manufacturing.

1. The Critical Role of the Spindle Shaft

The spindle shaft is the central rotating axis that holds and drives the cutting tool or workpiece. In precision applications, its performance is non-negotiable. A High Performance Spindle Shaft is distinguished by its ability to maintain extreme rotational accuracy, withstand significant radial and axial loads, and operate at high speeds with minimal thermal growth and vibration. It is the direct link between the motor’s power and the tool’s action, making its integrity paramount to the entire machining process.

2. Engineering Excellence: Design & Material Innovation

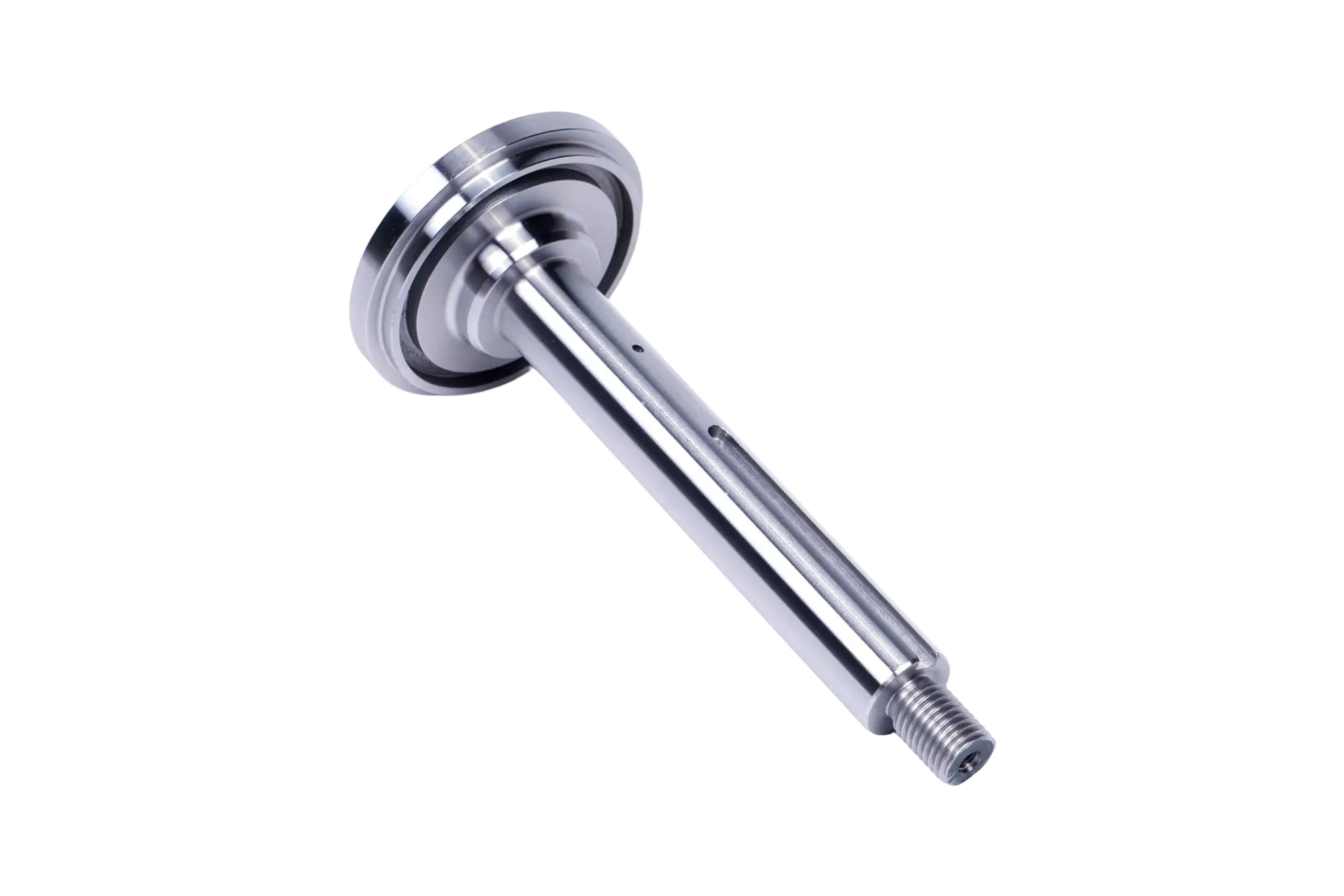

Ningbo Dongpei’s High Performance Spindle Shaft is engineered from the ground up to meet the rigorous demands of modern industry. Our design philosophy integrates superior materials with intelligent features.

• Premium Material Construction: Fabricated from high-quality stainless steel, our shaft provides an optimal balance of top-tier strength and exceptional corrosion resistance. This material choice ensures long-term structural integrity and durability, even in harsh coolant environments or applications with extreme temperature fluctuations, outperforming alternatives like aluminum which may prioritize lightness over ultimate strength.

• Precision-Machined Threaded End: The shaft interface is critical. Our precision-machined threaded end guarantees a firm and smooth integration with high-speed motors, machining centers, or other drive systems. This precise connection is essential for minimizing runout, reducing friction, and eliminating power loss, ensuring that every bit of motor torque is effectively transferred to the tool point.

• Integrated Stability Features: A key design highlight is the innovative integrated base flange. This feature significantly optimizes stability and load distribution under high torque conditions. By providing a larger, more secure mounting footprint, it minimizes deflection and long-term wear on the shaft and its bearings, directly contributing to sustained accuracy over the spindle’s lifespan.

• Advanced Cooling Support: Specially designed ports support integrated lubrication and cooling systems. This proactive thermal management is crucial for extending service life and maintaining reliability in demanding, continuous-operation applications, preventing heat-induced precision loss.

3. Technical Advantages & Performance Benefits

Investing in a high-grade spindle shaft delivers measurable returns across your manufacturing operations:

• Enhanced Machining Accuracy: Superior straightness, balance, and interface precision result in lower vibration (NVH) and minimal tool runout. This translates directly to tighter part tolerances, improved surface finishes, and the ability to hold critical geometries.

• Increased Rigidity & Stability: The robust stainless-steel construction and integrated flange design provide high static and dynamic stiffness. This allows for more aggressive machining parameters, reduces chatter, and enables the effective machining of hard materials like alloys and composites.

• Extended Operational Lifespan: The combination of corrosion-resistant material, optimized thermal management, and reduced wear from stable mounting leads to dramatically increased durability. This reduces unplanned downtime, lowers maintenance frequency, and improves the overall return on investment for the entire spindle assembly.

• Superior Power Transmission: The precise connection ensures efficient power transfer with minimal losses, allowing the spindle motor to perform at its peak potential and improving energy efficiency per part produced.

4. Industry Applications

This level of performance is essential for sectors where failure is not an option and precision is paramount:

• Aerospace Manufacturing: For milling complex structural components from titanium and aluminum, drilling accurate fastener holes, and grinding critical engine parts, where extreme reliability and precision are mandatory.

• High-Performance Automotive Systems: Used in machining engine blocks, transmission components, and high-precision racing parts that require exceptional speed and accuracy.

• Advanced Manufacturing & CNC Machining Centers: The core component in high-speed machining (HSM) centers, mold and die making equipment, and precision grinders for producing tools, dies, and complex industrial parts.

• Medical Device Production: Essential for machining intricate, high-tolerance components for surgical tools, implants, and diagnostic equipment from stainless steel and specialized alloys.

5. The Dongpei Advantage: Your Partner in Precision

Choosing Dongpei means more than buying a component; it’s partnering with a specialist in industrial engineering solutions.

• Deep Industry Expertise: Our focus on delivering solutions for the most demanding applications informs every design and manufacturing decision we make.

• Commitment to Quality: From material selection to final polishing and inspection, we adhere to stringent quality control protocols to ensure every High Performance Spindle Shaft meets its published specifications.

• Customization & Support: We understand that standard solutions don’t always fit. Our professional technical team is ready to discuss customization options for specific applications. For detailed specifications or consultation, contact our experts at +86-13208095582 or marketing@nbdongpei.com.

6. Conclusion: The Foundation of Precision

The spindle shaft is the unsung hero of precision manufacturing. Its performance sets the ceiling for what your machinery can achieve. Opting for a generically sourced shaft can lead to bottlenecks in accuracy, speed, and reliability. In contrast, investing in a professionally engineered High Performance Spindle Shaft from a trusted supplier like Dongpei builds a foundation for superior part quality, increased throughput, and long-term machine tool health.

By prioritizing engineered excellence in this core component, you invest in the sustained competitiveness and capability of your manufacturing operations.

Ready to specify the high-performance heart for your machinery?

Explore the detailed specifications and learn more about how this component can elevate your equipment’s performance:
High Performance Spindle Shaft – Dongpei

For direct engineering consultation, custom quotes, or technical support:

• Contact: Our Professional Engineering Team

• Phone: +86-13208095582

• Email: marketing@nbdongpei.com
