Executive Summary

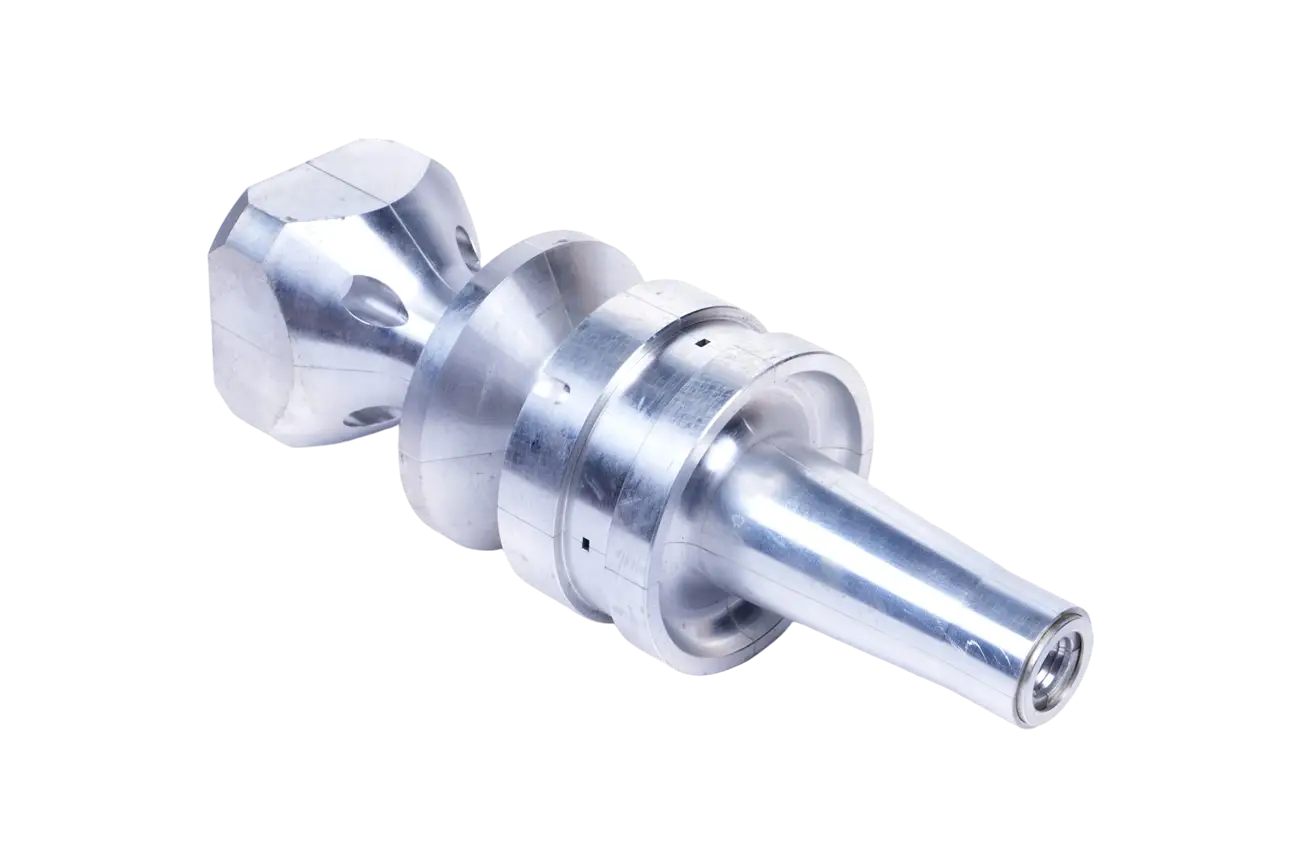

In the competitive landscape of modern manufacturing, the efficiency and quality of CNC machining are directly influenced by the connection between the machine spindle and the cutting tool. The High Performance CNC Machine Tool Tool Holder is this critical link—a precision-engineered component that dictates accuracy, tool life, and overall shop floor productivity. Selecting the right tool holder is not an accessory choice but a fundamental engineering decision. This guide details the technical specifications, performance benefits, and selection criteria for high-performance tool holders, empowering manufacturers to make informed decisions that maximize their return on investment in CNC technology.
1. The Pivotal Role of the Tool Holder in CNC Machining
A tool holder is the interface that clamps a cutting tool (like an end mill, drill, or boring bar) and mounts it into the CNC machine’s spindle. While the machine and the tool get most of the attention, the holder’s performance is what unlocks their full potential. A High Performance CNC Machine Tool Tool Holder is designed to:
-
Maximize Rigidity: Minimize deflection under cutting forces, enabling higher feed rates and depths of cut without chatter or vibration.
-
Ensure Precision & Repeatability: Maintain extreme concentricity (low Total Indicated Runout or TIR) for superior part accuracy and surface finish.
-
Optimize Balance: Engineered for high-speed operation, reducing vibration that damages spindles, ruins finishes, and shortens tool life.
-
Enhance Throughput: Enable faster tool changes, more aggressive machining parameters, and longer uninterrupted runtime.
2. Core Technologies and Design Features
High-performance holders distinguish themselves from standard models through advanced design and manufacturing. Key technologies include:
1. Premium Clamping Systems:
-
Hydraulic Expansion Holders: Use internal hydraulic pressure to create a uniform, 360° clamping force around the tool shank. This offers excellent balance, high grip strength, and very low runout (< 0.0003″ / 0.008 mm), ideal for high-precision finishing and high-speed applications.
-
Shrink-Fit Holders: Utilize thermal expansion/contraction. The holder is heated to expand its bore, a cool tool is inserted, and as the holder cools it shrinks to create an extremely rigid, concentric grip. This system offers maximum rigidity and simplicity with no moving parts.
-
Tribological Systems (e.g., TRIBOS by Schunk): Use mechanical force to elastically deform a precision-machined clamping bore, providing strong, concentric clamping similar to shrink-fit but without heat, suitable for sensitive tools.
2. Critical Performance Characteristics:
-
Material & Heat Treatment: Made from high-grade alloy steel (e.g., AISI 4140) with through-hardening or case-hardening for durability and fatigue resistance.
-
Dynamic Balance Rating: Rated at specific speeds (e.g., G2.5 at 25,000 RPM). Higher performance holders are balanced to G1.0 or better for ultra-high-speed machining.
-
Taper Integrity: The machine interface taper (CAT, BT, HSK, CAPTO) is precision-ground to ensure full contact with the spindle, maximizing stiffness and power transfer.
-
Coolant Delivery: Options for through-coolant channels that deliver high-pressure coolant directly to the cutting edge, critical for evacuating chips and managing heat in difficult materials.
3. Tangible Benefits and Return on Investment (ROI)
Investing in high-performance tool holders delivers clear, measurable operational advantages:
-
Improved Surface Finish & Part Accuracy: Lower runout and vibration directly translate to better finishes and tighter tolerances.
-
Extended Tool Life: By reducing vibration and ensuring the tool cuts as designed, tool life can increase by 50% or more.
-
Increased Material Removal Rates (MRR): Greater rigidity allows for more aggressive cutting parameters, reducing cycle times.
-
Reduced Machine Downtime & Spindle Wear: Better balance protects expensive spindle bearings from vibration-induced damage.
-
Enhanced Process Reliability: Consistent, predictable performance reduces scrap and the need for rework.
4. Application-Specific Selection Guide
Choosing the right holder depends on the primary machining operation and material. Use this framework:
| Primary Machining Operation | Recommended Holder Type | Key Performance Rationale |
|---|---|---|
| High-Speed Finishing (Aluminum, Graphite) | Hydraulic Expansion or Balanced Shrink-Fit | Superior balance and lowest runout are critical for achieving fine finishes at high RPMs. |
| Heavy Roughing & Hard Milling (Steel, Titanium) | Shrink-Fit or Milling Chucks with High Grip Force | Maximum rigidity is required to withstand high cutting forces and prevent tool pull-out. |
| Deep Cavity & Reach Milling | Hydraulic Expansion or Extended Length Shrink-Fit | Excellent grip strength and good damping characteristics help manage the longer overhang. |
| Multi-Task & High-Mix Production | High-Quality Collet Chucks (e.g., ER) with Precision Nuts | Versatility for frequent tool changes; performance depends heavily on collet and nut quality. |
| High-Precision Boring & Jig Grinding | Hydraulic Expansion or Precision Shrink-Fit | Ultralow runout (< 0.0001″) is absolutely mandatory for achieving bore size and roundness. |
5. Implementation and Best Practices
To realize the full benefits of high-performance holders:
-
Spindle Maintenance: Regularly clean and inspect the machine spindle taper. A dirty or damaged spindle will negate the benefits of a premium holder.
-
Proper Tool Installation: Follow the manufacturer’s procedure exactly. For shrink-fit, use the correct induction heater. For hydraulic holders, use the recommended pressure setting.
-
Regular Runout Verification: Use a dial test indicator to check holder runout at the tool tip periodically, especially after a crash or for critical operations.
-
Systematic Organization: Implement a tool crib or presetting system to manage holders, ensuring the right holder is used for each job and is kept in calibration.
6. Conclusion: An Essential Investment, Not an Accessory
In the pursuit of manufacturing excellence, every element of the process chain must be optimized. The High Performance CNC Machine Tool Tool Holder is a leverage point that amplifies the capability of both the machine and the cutting tool. The incremental cost of a premium holder is rapidly offset by gains in tool life, part quality, and throughput.
For job shops and OEMs alike, standardizing on high-performance tool holders is a strategic decision that builds a foundation for quality, efficiency, and competitiveness in an increasingly demanding market.
Disclaimer: This guide is for informational purposes. Always consult the tool holder and machine tool manufacturer’s specifications and recommendations for compatibility and safe operating procedures.
