As a core component in automotive, aerospace, energy, and industrial machinery, spindle performance directly impacts system efficiency. The High grade Precision Machining Spindle from Ningbo Dongpei Machinery Co., Ltd. delivers exceptional customized precision, performance, and durability for high-speed transmissions, precision gearboxes, and robotic systems.
Why Choose Dongpei Precision Machining Spindles?
| Feature | Benefit |
|---|---|
| High-quality stainless steel/alloy | Top wear, corrosion & temperature resistance |
| Precision threads & polished surface | Reduces friction and vibration |
| Optimized grooves + progressive taper | Improves speed and integration accuracy |
| Advanced dynamic balancing | Reduces noise and energy consumption |
| Multiple shaft types | Heavy-duty, lightweight, and precision short |
Key Specifications
| Parameter | Detail |
|---|---|
| Material | Stainless steel or high-performance alloy |
| Design features | Precision threads, polished surface, optimized grooves, progressive taper |
| Technology | Advanced dynamic balancing |
| Applications | Aerospace, automotive, medical, robotics, energy |

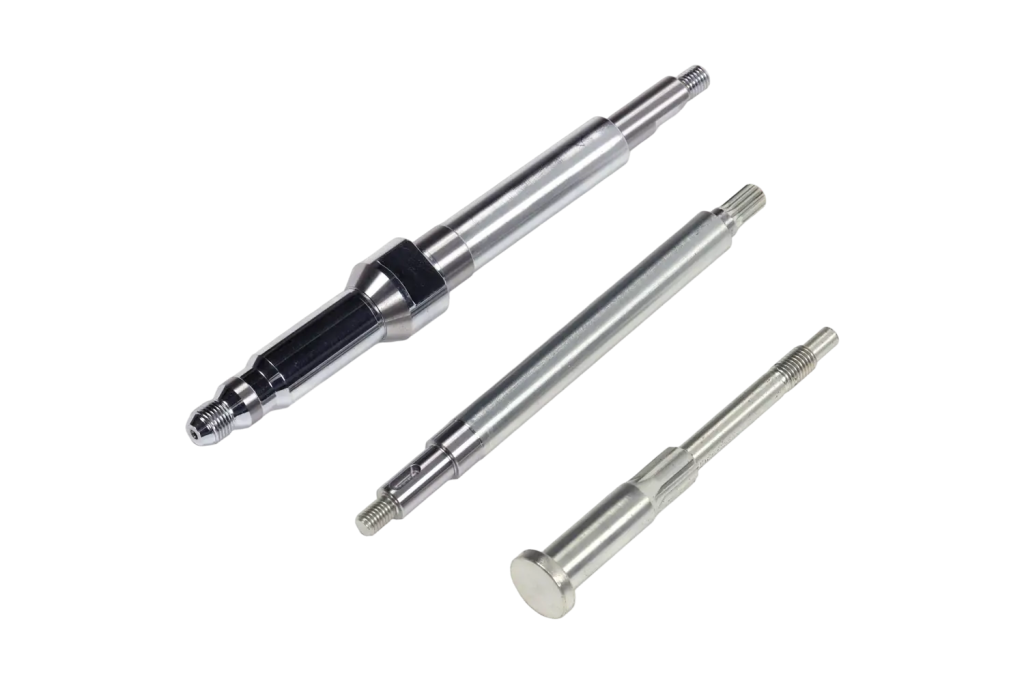

Spindle Types Available
| Type | Best For |
|---|---|
| Heavy-duty shafts | High torque transmission in harsh industrial environments |
| Streamlined lightweight shafts | Strength with easy integration |
| Precision short shafts | Compact spaces, clamping systems, linear actuators |
Core Applications
This cnc machining spindle for aerospace is essential for:
| Industry | Application |
|---|---|
| Aerospace | Complex structural components (aluminum, titanium) |
| Medical & Dental | Orthopedic implants, surgical instruments |
| Automotive | High-speed transmissions, precision gearboxes |
| Die/Mold Making | Intricate injection molds, stamping dies |
| Robotics & Energy | Precision robotic systems, turbine components |
Key Engineering Features
1. Extreme Rotational Accuracy
High-grade spindles achieve total indicated runout (TIR) as low as 1-2 microns at the tool interface, minimizing vibration and ensuring perfect tool concentricity.
2. Advanced Thermal Management
Sophisticated cooling systems (internal shaft cooling + housing cooling) maintain stable temperature, preventing thermal growth that compromises accuracy during long production runs.
3. Precision Bearings
Angular contact ball bearings (P4/P2 accuracy classes) with optimal preload provide high rigidity and speed for demanding applications.
4. Optimized Grooves & Progressive Taper
These design elements effectively improve speed and integration accuracy, achieving excellent stability in assembly and operation.
5. Dynamic Balancing Technology
Advanced machining and dynamic balancing technologies significantly reduce noise and energy consumption, improve energy efficiency, and extend equipment life.
Performance Impact
| Benefit | Result |
|---|---|
| Superior surface finish | Mirror-like finishes, eliminates secondary polishing |
| Extended tool life | Reduced uneven wear, longer cutting tool lifespan |
| Higher accuracy | ±0.005mm or better tolerances |
| Increased throughput | Higher RPMs, aggressive cutting parameters |
| Reduced noise & energy | Dynamic balancing technology |
Selection Guide
| Application Focus | Priority | Critical Specs |
|---|---|---|
| High-speed finishing | Ultra-high RPM, thermal stability | Max RPM 40,000+, G0.4 balance |
| Heavy-duty milling | High torque, rigidity | 25kW+ power, large bearings |
| Hard material machining | Robustness, vibration damping | Hydrostatic bearings, vibration sensors |
| Micro-machining | Ultra-precision, ultra-high speed | TIR < 1µm, very high RPM |
FAQ
Q1: What is a high grade precision machining spindle?
A: A high grade precision machining spindle is a high-performance rotational unit that holds and drives a cutting tool, engineered for extreme accuracy, stiffness, and thermal stability.
Q2: What materials are used?
A: These spindles are made from high-quality stainless steel or high-performance alloys, offering top-notch wear resistance, corrosion resistance, and extreme temperature tolerance.
Q3: What industries use these spindles?
A: precision spindle for medical device manufacturing is used in aerospace, medical, automotive, die/mold making, robotics, and energy sectors.
Q4: What is total indicated runout (TIR)?
A: TIR measures rotational accuracy. High-grade spindles achieve TIR as low as 1-2 microns, ensuring minimal vibration and perfect tool concentricity.
Q5: How does thermal management work?
A: Internal shaft cooling channels coolant through the rotating shaft, while housing cooling stabilizes the entire spindle body temperature, preventing thermal growth.
Q6: What are the different spindle types?
A: This series covers heavy-duty shafts (high torque), streamlined lightweight shafts (strength + easy integration), and precision short shafts (compact spaces).
Q7: What is the advantage of dynamic balancing?
A: Advanced dynamic balancing technology significantly reduces noise and energy consumption, improves energy efficiency, and extends equipment life.
Q8: How do I get a quote?
A: Contact Dongpei’s professional team with your application requirements and specifications.
Get a Quote
Ready to upgrade your manufacturing capability with a high grade precision machining spindle? Contact Ningbo Dongpei Machinery Co., Ltd. today.
